Mutual information versus SCA

In this example, we are comparing the results of the co-evolution analysis on serine proteases using SCA and the mutual information.

Import necessary

from cocoatree.datasets import load_S1A_serine_proteases
from cocoatree.msa import filter_sequences

from cocoatree.statistics.position import compute_conservation
from cocoatree.statistics.pairwise import compute_sca_matrix
from cocoatree.statistics.pairwise import compute_mutual_information_matrix

import matplotlib.pyplot as plt

import numpy as np

Load the dataset

We start by importing the dataset.

serine_dataset = load_S1A_serine_proteases(paper='rivoire')
seq_id = serine_dataset["sequence_ids"]
sequences = serine_dataset["alignment"]
n_pos, n_seq = len(sequences[0]), len(sequences)

Filtering of the multiple sequence alignment

We are going to filter and clean the MSA

seq_kept, seq_id_kept, pos_kept = filter_sequences(sequences, seq_id)

Compute the SCA matrix

SCA_matrix = compute_sca_matrix(seq_kept)

computing weight of seq 1/1376
computing weight of seq 101/1376
computing weight of seq 201/1376
computing weight of seq 301/1376
computing weight of seq 401/1376
computing weight of seq 501/1376
computing weight of seq 601/1376
computing weight of seq 701/1376
computing weight of seq 801/1376
computing weight of seq 901/1376
computing weight of seq 1001/1376
computing weight of seq 1101/1376
computing weight of seq 1201/1376
computing weight of seq 1301/1376

Compute the Mutual information matrix

normalized_MI = compute_mutual_information_matrix(seq_kept)
MI = compute_mutual_information_matrix(seq_kept, normalize=False)

computing weight of seq 1/1376
computing weight of seq 101/1376
computing weight of seq 201/1376
computing weight of seq 301/1376
computing weight of seq 401/1376
computing weight of seq 501/1376
computing weight of seq 601/1376
computing weight of seq 701/1376
computing weight of seq 801/1376
computing weight of seq 901/1376
computing weight of seq 1001/1376
computing weight of seq 1101/1376
computing weight of seq 1201/1376
computing weight of seq 1301/1376
computing weight of seq 1/1376
computing weight of seq 101/1376
computing weight of seq 201/1376
computing weight of seq 301/1376
computing weight of seq 401/1376
computing weight of seq 501/1376
computing weight of seq 601/1376
computing weight of seq 701/1376
computing weight of seq 801/1376
computing weight of seq 901/1376
computing weight of seq 1001/1376
computing weight of seq 1101/1376
computing weight of seq 1201/1376
computing weight of seq 1301/1376

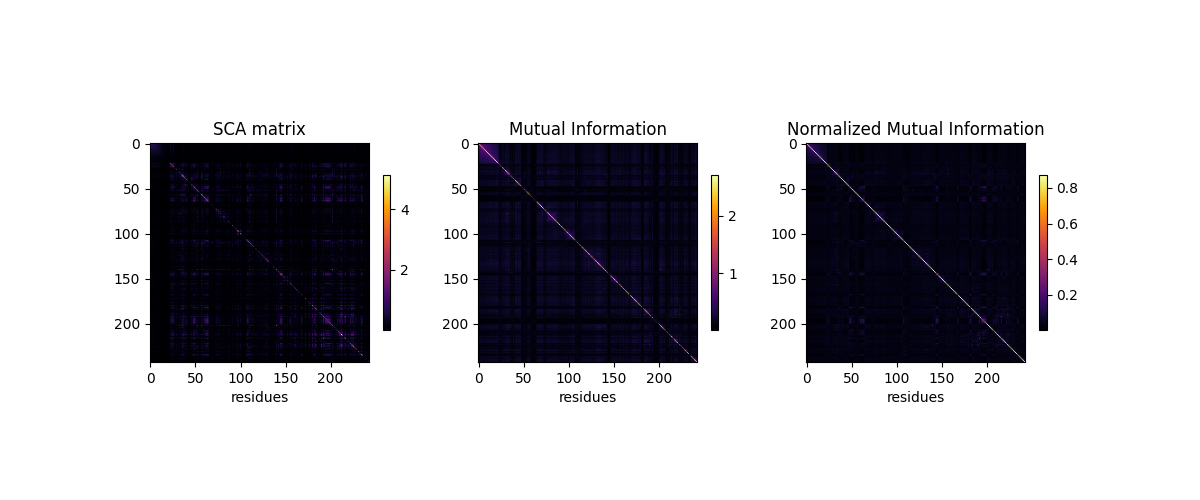

Compare MI versus SCA

plt.figure(figsize=(12, 5))

for ih, (heatmap, title) in \
    enumerate(zip([SCA_matrix, MI, normalized_MI],
                  ['SCA matrix', 'Mutual Information',
                   'Normalized Mutual Information'])):
    plt.subplot(1, 3, ih+1)
    plt.imshow(heatmap, cmap='inferno')
    plt.xlabel('residues', fontsize=10)
    plt.ylabel(None)
    plt.title('%s' % title)
    plt.colorbar(shrink=0.4)

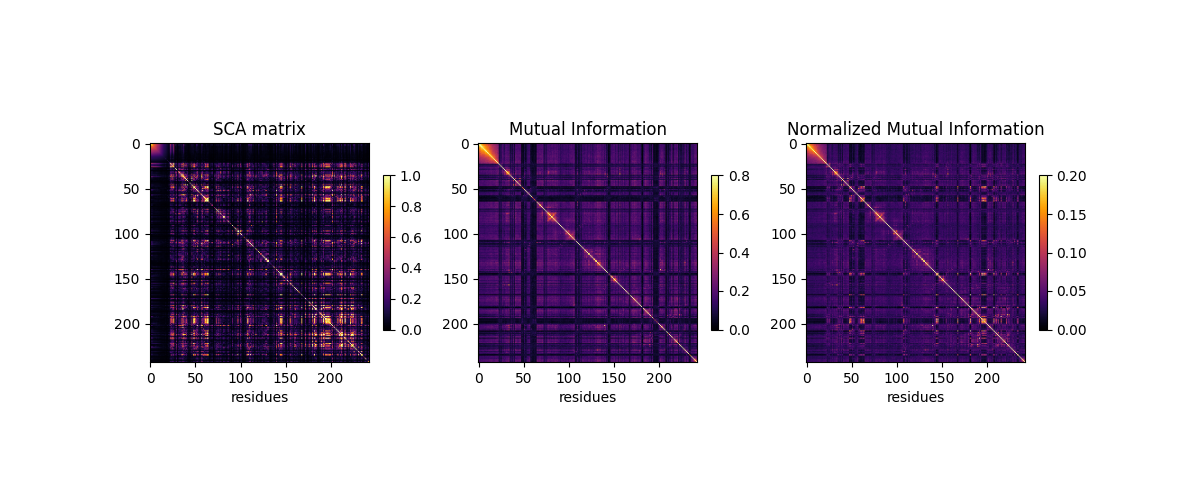

Adapt heatmap scale

plt.figure(figsize=(12, 5))

for ih, (heatmap, title, vmm) in \
    enumerate(zip([SCA_matrix, MI, normalized_MI],
                  ['SCA matrix', 'Mutual Information',
                   'Normalized Mutual Information'],
                  [[0, 1], [0, 0.8], [0, 0.2]])):
    plt.subplot(1, 3, ih+1)
    plt.imshow(heatmap, vmin=vmm[0], vmax=vmm[1], cmap='inferno')
    plt.xlabel('residues', fontsize=10)
    plt.ylabel(None)
    plt.title('%s' % title)
    plt.colorbar(shrink=0.4)

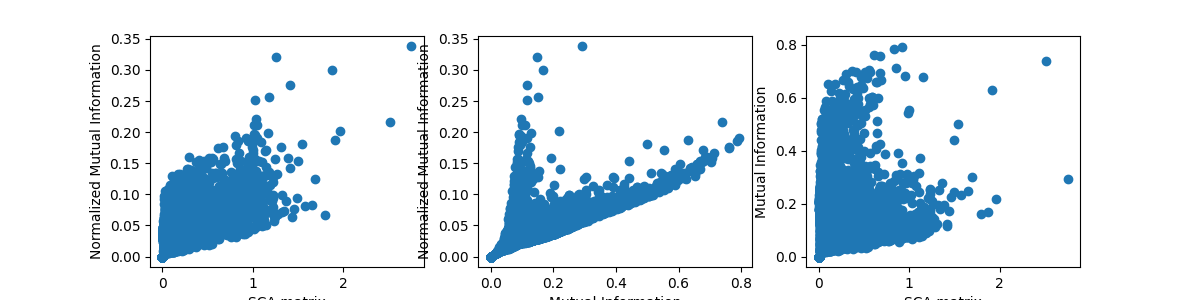

Relationships between SCA and MI’s

plt.figure(figsize=(12, 3))
plt.subplot(1, 3, 1)
plt.plot(np.triu(SCA_matrix, 1).flatten(),
         np.triu(normalized_MI, 1).flatten(), 'o')
plt.xlabel('SCA matrix')
plt.ylabel('Normalized Mutual Information')

plt.subplot(1, 3, 2)
plt.plot(np.triu(MI, 1).flatten(), np.triu(normalized_MI, 1).flatten(), 'o')
plt.xlabel('Mutual Information')
plt.ylabel('Normalized Mutual Information')

plt.subplot(1, 3, 3)
plt.plot(np.triu(SCA_matrix, 1).flatten(), np.triu(MI, 1).flatten(), 'o')
plt.xlabel('SCA matrix')
plt.ylabel('Mutual Information')

Text(769.1928104575164, 0.5, 'Mutual Information')

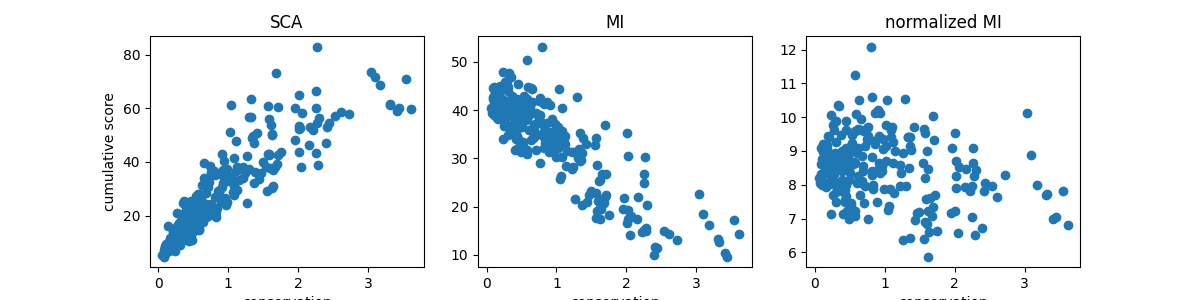

Relationship between coevolution metrics and conservation

plt.figure(figsize=(12, 3))

Di = compute_conservation(seq_kept)

for ih, (heatmap, title) in enumerate(zip([SCA_matrix, MI, normalized_MI],
                                          ['SCA', 'MI', 'normalized MI'])):
    plt.subplot(1, 3, ih + 1)
    cumul = np.sum(heatmap, axis=0) - np.diag(heatmap)
    plt.plot(Di, cumul, 'o')
    plt.xlabel('conservation')
    if ih == 0:
        plt.ylabel('cumulative score')
    plt.title(title)
