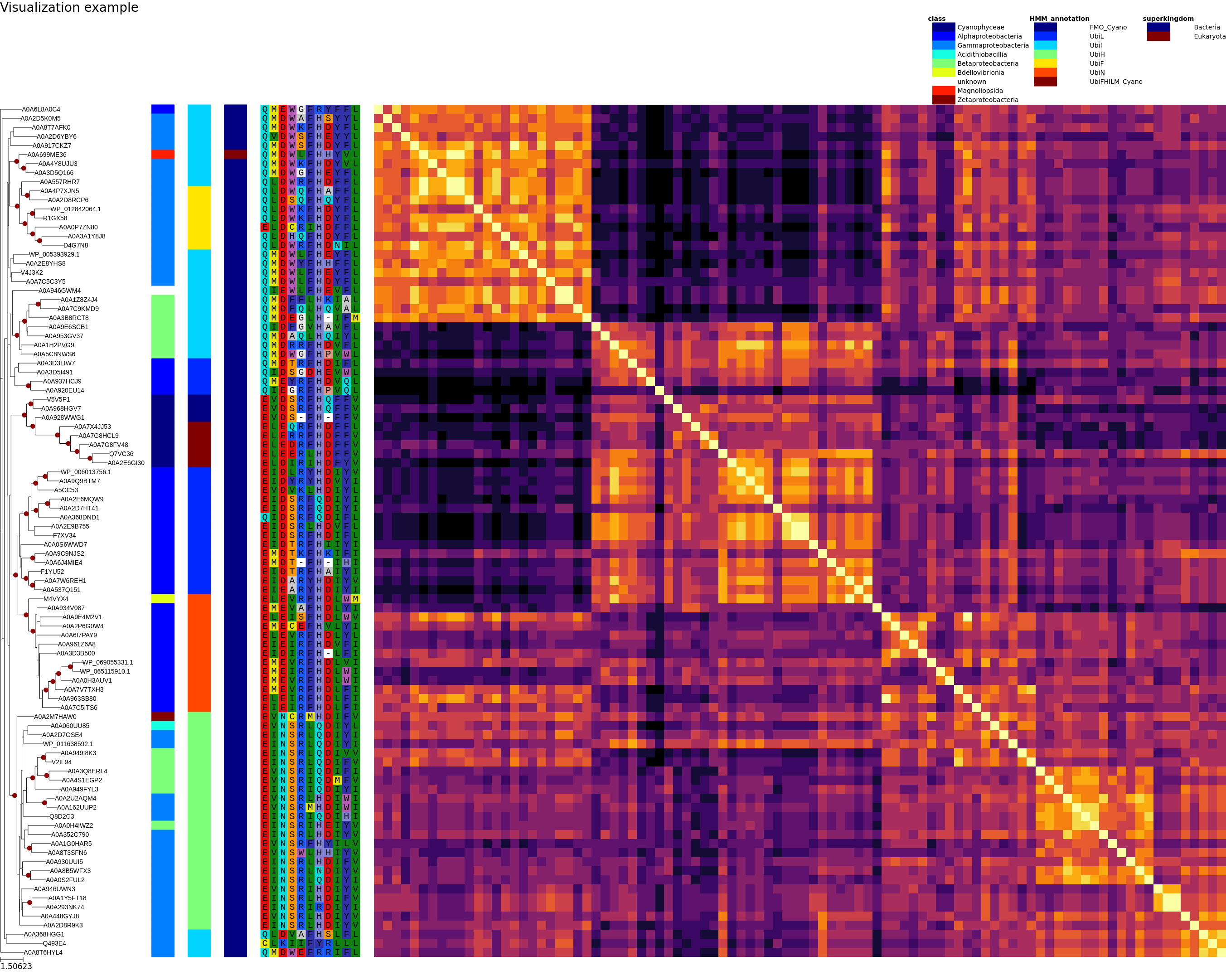

Plot sector together with (phylogenetic) tree and metadata

A small example that shows how to plot the sector composition within a tree and to add metadata

{'nodes': [[31.289534754445334, 120.5, 42.289534754445334, 131.5, 14, None], [46.705352505149975, 135.5, 57.705352505149975, 146.5, 16, None], [32.4808896808375, 219.25, 43.4808896808375, 230.25, 19, None], [54.58765257137162, 195.5, 65.58765257137162, 206.5, 22, None], [49.398437349742665, 258.0, 60.398437349742665, 269.0, 25, None], [65.86357979212683, 235.5, 76.86357979212683, 246.5, 26, None], [66.79386892879258, 280.5, 77.79386892879258, 291.5, 29, None], [81.8323854525269, 295.5, 92.8323854525269, 306.5, 31, None], [32.12313321774258, 504.25, 43.12313321774258, 515.25, 45, None], [48.679112879572095, 473.0, 59.679112879572095, 484.0, 46, None], [78.55170922581385, 435.5, 89.55170922581385, 446.5, 48, None], [57.07722316048435, 615.5, 68.07722316048435, 626.5, 62, None], [48.12468922512116, 680.1875, 59.12468922512116, 691.1875, 67, None], [62.436227544663296, 655.5, 73.4362275446633, 666.5, 68, None], [66.95789928619465, 704.875, 77.95789928619465, 715.875, 71, None], [121.1683785114693, 724.25, 132.1683785114693, 735.25, 73, None], [145.02453787698153, 743.0, 156.02453787698153, 754.0, 75, None], [164.40777460579642, 760.5, 175.40777460579642, 771.5, 77, None], [193.0522082484456, 775.5, 204.0522082484456, 786.5, 79, None], [29.014449605969038, 1033.009765625, 40.014449605969034, 1044.009765625, 82, None], [52.61290221833339, 898.0, 63.61290221833339, 909.0, 84, None], [73.09825002681382, 830.5, 84.09825002681382, 841.5, 86, None], [94.23324323948347, 815.5, 105.23324323948347, 826.5, 87, None], [74.21291071458916, 890.5, 85.21291071458916, 901.5, 91, None], [99.28727456686241, 875.5, 110.28727456686241, 886.5, 92, None], [66.44392778126328, 995.5, 77.44392778126328, 1006.5, 102, None], [51.952817999901654, 1040.5, 62.952817999901654, 1051.5, 105, None], [66.13373538188878, 1055.5, 77.13373538188878, 1066.5, 107, None], [52.32877250979169, 1121.14453125, 63.32877250979169, 1132.14453125, 110, None], [67.34786711945506, 1156.7890625, 78.34786711945506, 1167.7890625, 112, None], [96.17563111730333, 1286.75, 107.17563111730333, 1297.75, 125, None], [111.3467876898846, 1268.0, 122.3467876898846, 1279.0, 126, None], [123.9052542877582, 1250.5, 134.9052542877582, 1261.5, 127, None], [149.74536440369974, 1235.5, 160.74536440369974, 1246.5, 128, None], [26.859555321173133, 1519.4453125, 37.85955532117313, 1530.4453125, 135, None], [66.76743263472024, 1480.5, 77.76743263472024, 1491.5, 148, None], [90.49896162386045, 1435.5, 101.49896162386045, 1446.5, 150, None], [97.67660329499483, 1475.5, 108.67660329499483, 1486.5, 153, None], [92.83048999274695, 1535.5, 103.83048999274695, 1546.5, 157, None], [59.28000822879911, 1635.5, 70.28000822879912, 1646.5, 165, None], [57.04755288861216, 1695.5, 68.04755288861216, 1706.5, 170, None], [60.04379927582082, 1755.5, 71.04379927582082, 1766.5, 177, None]], 'faces': [[48.39703792824767, 3.0, 133.39703792824767, 19.0, 1, 'A0A6L8A0C4'], [334.0911170635114, 0.5, 385.0911170635114, 21.5, 1, None], [414.0911170635114, 0.5, 465.0911170635114, 21.5, 1, None], [494.0911170635114, 0.5, 545.0911170635113, 21.5, 1, None], [574.0911170635113, 0.5, 795.0911170635113, 21.5, 1, ''], [824.5911170635113, 1.0, 2704.5911170635113, 21.0, 1, None], [45.29873024521363, 23.0, 134.29873024521362, 39.0, 3, 'A0A2D5K0M5'], [334.0911170635114, 20.5, 385.0911170635114, 41.5, 3, None], [414.0911170635114, 20.5, 465.0911170635114, 41.5, 3, None], [494.0911170635114, 20.5, 545.0911170635113, 41.5, 3, None], [574.0911170635113, 20.5, 795.0911170635113, 41.5, 3, ''], [824.5911170635113, 21.0, 2704.5911170635113, 41.0, 3, None], [70.17999088159766, 43.0, 156.17999088159766, 59.0, 9, 'A0A8T7AFK0'], [334.0911170635114, 40.5, 385.0911170635114, 61.5, 9, None], [414.0911170635114, 40.5, 465.0911170635114, 61.5, 9, None], [494.0911170635114, 40.5, 545.0911170635113, 61.5, 9, None], [574.0911170635113, 40.5, 795.0911170635113, 61.5, 9, ''], [824.5911170635113, 41.0, 2704.5911170635113, 61.0, 9, None], [81.21070631019039, 63.0, 169.2107063101904, 79.0, 10, 'A0A2D6YBY6'], [334.0911170635114, 60.5, 385.0911170635114, 81.5, 10, None], [414.0911170635114, 60.5, 465.0911170635114, 81.5, 10, None], [494.0911170635114, 60.5, 545.0911170635113, 81.5, 10, None], [574.0911170635113, 60.5, 795.0911170635113, 81.5, 10, ''], [824.5911170635113, 61.0, 2704.5911170635113, 81.0, 10, None], [71.81862734653436, 83.0, 157.81862734653436, 99.0, 11, 'A0A917CKZ7'], [334.0911170635114, 80.5, 385.0911170635114, 101.5, 11, None], [414.0911170635114, 80.5, 465.0911170635114, 101.5, 11, None], [494.0911170635114, 80.5, 545.0911170635113, 101.5, 11, None], [574.0911170635113, 80.5, 795.0911170635113, 101.5, 11, ''], [824.5911170635113, 81.0, 2704.5911170635113, 101.0, 11, None], [60.63611267800852, 103.0, 147.63611267800852, 119.0, 15, 'A0A699ME36'], [334.0911170635114, 100.5, 385.0911170635114, 121.5, 15, None], [414.0911170635114, 100.5, 465.0911170635114, 121.5, 15, None], [494.0911170635114, 100.5, 545.0911170635113, 121.5, 15, None], [574.0911170635113, 100.5, 795.0911170635113, 121.5, 15, ''], [824.5911170635113, 101.0, 2704.5911170635113, 121.0, 15, None], [84.58774593684677, 123.0, 171.58774593684677, 139.0, 17, 'A0A4Y8UJU3'], [334.0911170635114, 120.5, 385.0911170635114, 141.5, 17, None], [414.0911170635114, 120.5, 465.0911170635114, 141.5, 17, None], [494.0911170635114, 120.5, 545.0911170635113, 141.5, 17, None], [574.0911170635113, 120.5, 795.0911170635113, 141.5, 17, ''], [824.5911170635113, 121.0, 2704.5911170635113, 141.0, 17, None], [76.07004003945015, 143.0, 163.07004003945013, 159.0, 18, 'A0A3D5Q166'], [334.0911170635114, 140.5, 385.0911170635114, 161.5, 18, None], [414.0911170635114, 140.5, 465.0911170635114, 161.5, 18, None], [494.0911170635114, 140.5, 545.0911170635113, 161.5, 18, None], [574.0911170635113, 140.5, 795.0911170635113, 161.5, 18, ''], [824.5911170635113, 141.0, 2704.5911170635113, 161.0, 18, None], [88.33794882987962, 163.0, 176.33794882987962, 179.0, 21, 'A0A557RHR7'], [334.0911170635114, 160.5, 385.0911170635114, 181.5, 21, None], [414.0911170635114, 160.5, 465.0911170635114, 181.5, 21, None], [494.0911170635114, 160.5, 545.0911170635113, 181.5, 21, None], [574.0911170635113, 160.5, 795.0911170635113, 181.5, 21, ''], [824.5911170635113, 161.0, 2704.5911170635113, 181.0, 21, None], [89.12938391852806, 183.0, 175.12938391852805, 199.0, 23, 'A0A4P7XJN5'], [334.0911170635114, 180.5, 385.0911170635114, 201.5, 23, None], [414.0911170635114, 180.5, 465.0911170635114, 201.5, 23, None], [494.0911170635114, 180.5, 545.0911170635113, 201.5, 23, None], [574.0911170635113, 180.5, 795.0911170635113, 201.5, 23, ''], [824.5911170635113, 181.0, 2704.5911170635113, 201.0, 23, None], [105.92607846338126, 203.0, 195.92607846338126, 219.0, 24, 'A0A2D8RCP6'], [334.0911170635114, 200.5, 385.0911170635114, 221.5, 24, None], [414.0911170635114, 200.5, 465.0911170635114, 221.5, 24, None], [494.0911170635114, 200.5, 545.0911170635113, 221.5, 24, None], [574.0911170635113, 200.5, 795.0911170635113, 221.5, 24, ''], [824.5911170635113, 201.0, 2704.5911170635113, 221.0, 24, None], [111.44394991552481, 223.0, 223.4439499155248, 239.0, 27, 'WP_012842064.1'], [334.0911170635114, 220.5, 385.0911170635114, 241.5, 27, None], [414.0911170635114, 220.5, 465.0911170635114, 241.5, 27, None], [494.0911170635114, 220.5, 545.0911170635113, 241.5, 27, None], [574.0911170635113, 220.5, 795.0911170635113, 241.5, 27, ''], [824.5911170635113, 221.0, 2704.5911170635113, 241.0, 27, None], [95.0085967091028, 243.0, 149.0085967091028, 259.0, 28, 'R1GX58'], [334.0911170635114, 240.5, 385.0911170635114, 261.5, 28, None], [414.0911170635114, 240.5, 465.0911170635114, 261.5, 28, None], [494.0911170635114, 240.5, 545.0911170635113, 261.5, 28, None], [574.0911170635113, 240.5, 795.0911170635113, 261.5, 28, ''], [824.5911170635113, 241.0, 2704.5911170635113, 261.0, 28, None], [130.4685082592486, 263.0, 216.4685082592486, 279.0, 30, 'A0A0P7ZN80'], [334.0911170635114, 260.5, 385.0911170635114, 281.5, 30, None], [414.0911170635114, 260.5, 465.0911170635114, 281.5, 30, None], [494.0911170635114, 260.5, 545.0911170635113, 281.5, 30, None], [574.0911170635113, 260.5, 795.0911170635113, 281.5, 30, ''], [824.5911170635113, 261.0, 2704.5911170635113, 281.0, 30, None], [149.73683571326336, 283.0, 233.73683571326336, 299.0, 32, 'A0A3A1Y8J8'], [334.0911170635114, 280.5, 385.0911170635114, 301.5, 32, None], [414.0911170635114, 280.5, 465.0911170635114, 301.5, 32, None], [494.0911170635114, 280.5, 545.0911170635113, 301.5, 32, None], [574.0911170635113, 280.5, 795.0911170635113, 301.5, 32, ''], [824.5911170635113, 281.0, 2704.5911170635113, 301.0, 32, None], [140.09632634509154, 303.0, 195.09632634509154, 319.0, 33, 'D4G7N8'], [334.0911170635114, 300.5, 385.0911170635114, 321.5, 33, None], [414.0911170635114, 300.5, 465.0911170635114, 321.5, 33, None], [494.0911170635114, 300.5, 545.0911170635113, 321.5, 33, None], [574.0911170635113, 300.5, 795.0911170635113, 321.5, 33, ''], [824.5911170635113, 301.0, 2704.5911170635113, 321.0, 33, None], [63.903003397821365, 323.0, 175.90300339782135, 339.0, 36, 'WP_005393929.1'], [334.0911170635114, 320.5, 385.0911170635114, 341.5, 36, None], [414.0911170635114, 320.5, 465.0911170635114, 341.5, 36, None], [494.0911170635114, 320.5, 545.0911170635113, 341.5, 36, None], [574.0911170635113, 320.5, 795.0911170635113, 341.5, 36, ''], [824.5911170635113, 321.0, 2704.5911170635113, 341.0, 36, None], [57.0329864769228, 343.0, 145.03298647692282, 359.0, 37, 'A0A2E8YHS8'], [334.0911170635114, 340.5, 385.0911170635114, 361.5, 37, None], [414.0911170635114, 340.5, 465.0911170635114, 361.5, 37, None], [494.0911170635114, 340.5, 545.0911170635113, 361.5, 37, None], [574.0911170635113, 340.5, 795.0911170635113, 361.5, 37, ''], [824.5911170635113, 341.0, 2704.5911170635113, 361.0, 37, None], [45.94535611287965, 363.0, 94.94535611287965, 379.0, 39, 'V4J3K2'], [334.0911170635114, 360.5, 385.0911170635114, 381.5, 39, None], [414.0911170635114, 360.5, 465.0911170635114, 381.5, 39, None], [494.0911170635114, 360.5, 545.0911170635113, 381.5, 39, None], [574.0911170635113, 360.5, 795.0911170635113, 381.5, 39, ''], [824.5911170635113, 361.0, 2704.5911170635113, 381.0, 39, None], [57.68304391991374, 383.0, 145.68304391991376, 399.0, 40, 'A0A7C5C3Y5'], [334.0911170635114, 380.5, 385.0911170635114, 401.5, 40, None], [414.0911170635114, 380.5, 465.0911170635114, 401.5, 40, None], [494.0911170635114, 380.5, 545.0911170635113, 401.5, 40, None], [574.0911170635113, 380.5, 795.0911170635113, 401.5, 40, ''], [824.5911170635113, 381.0, 2704.5911170635113, 401.0, 40, None], [85.04641016822198, 403.0, 179.046410168222, 419.0, 44, 'A0A946GWM4'], [334.0911170635114, 400.5, 385.0911170635114, 421.5, 44, None], [414.0911170635114, 400.5, 465.0911170635114, 421.5, 44, None], [494.0911170635114, 400.5, 545.0911170635113, 421.5, 44, None], [574.0911170635113, 400.5, 795.0911170635113, 421.5, 44, ''], [824.5911170635113, 401.0, 2704.5911170635113, 421.0, 44, None], [133.98000456878435, 423.0, 215.98000456878435, 439.0, 49, 'A0A1Z8Z4J4'], [334.0911170635114, 420.5, 385.0911170635114, 441.5, 49, None], [414.0911170635114, 420.5, 465.0911170635114, 441.5, 49, None], [494.0911170635114, 420.5, 545.0911170635113, 441.5, 49, None], [574.0911170635113, 420.5, 795.0911170635113, 441.5, 49, ''], [824.5911170635113, 421.0, 2704.5911170635113, 441.0, 49, None], [127.12135516190224, 443.0, 218.12135516190224, 459.0, 50, 'A0A7C9KMD9'], [334.0911170635114, 440.5, 385.0911170635114, 461.5, 50, None], [414.0911170635114, 440.5, 465.0911170635114, 461.5, 50, None], [494.0911170635114, 440.5, 545.0911170635113, 461.5, 50, None], [574.0911170635113, 440.5, 795.0911170635113, 461.5, 50, ''], [824.5911170635113, 441.0, 2704.5911170635113, 461.0, 50, None], [108.11896497634942, 463.0, 196.11896497634942, 479.0, 51, 'A0A3B8RCT8'], [334.0911170635114, 460.5, 385.0911170635114, 481.5, 51, None], [414.0911170635114, 460.5, 465.0911170635114, 481.5, 51, None], [494.0911170635114, 460.5, 545.0911170635113, 481.5, 51, None], [574.0911170635113, 460.5, 795.0911170635113, 481.5, 51, ''], [824.5911170635113, 461.0, 2704.5911170635113, 481.0, 51, None], [107.42309576309924, 483.0, 195.42309576309924, 499.0, 53, 'A0A9E6SCB1'], [334.0911170635114, 480.5, 385.0911170635114, 501.5, 53, None], [414.0911170635114, 480.5, 465.0911170635114, 501.5, 53, None], [494.0911170635114, 480.5, 545.0911170635113, 501.5, 53, None], [574.0911170635113, 480.5, 795.0911170635113, 501.5, 53, ''], [824.5911170635113, 481.0, 2704.5911170635113, 501.0, 53, None], [98.7161779997671, 503.0, 184.7161779997671, 519.0, 54, 'A0A953GV37'], [334.0911170635114, 500.5, 385.0911170635114, 521.5, 54, None], [414.0911170635114, 500.5, 465.0911170635114, 521.5, 54, None], [494.0911170635114, 500.5, 545.0911170635113, 521.5, 54, None], [574.0911170635113, 500.5, 795.0911170635113, 521.5, 54, ''], [824.5911170635113, 501.0, 2704.5911170635113, 521.0, 54, None], [74.46992635190594, 523.0, 164.46992635190594, 539.0, 56, 'A0A1H2PVG9'], [334.0911170635114, 520.5, 385.0911170635114, 541.5, 56, None], [414.0911170635114, 520.5, 465.0911170635114, 541.5, 56, None], [494.0911170635114, 520.5, 545.0911170635113, 541.5, 56, None], [574.0911170635113, 520.5, 795.0911170635113, 541.5, 56, ''], [824.5911170635113, 521.0, 2704.5911170635113, 541.0, 56, None], [73.88477339706446, 543.0, 166.88477339706446, 559.0, 57, 'A0A5C8NWS6'], [334.0911170635114, 540.5, 385.0911170635114, 561.5, 57, None], [414.0911170635114, 540.5, 465.0911170635114, 561.5, 57, None], [494.0911170635114, 540.5, 545.0911170635113, 561.5, 57, None], [574.0911170635113, 540.5, 795.0911170635113, 561.5, 57, ''], [824.5911170635113, 541.0, 2704.5911170635113, 561.0, 57, None], [81.02795166738949, 563.0, 166.0279516673895, 579.0, 60, 'A0A3D3LIW7'], [334.0911170635114, 560.5, 385.0911170635114, 581.5, 60, None], [414.0911170635114, 560.5, 465.0911170635114, 581.5, 60, None], [494.0911170635114, 560.5, 545.0911170635113, 581.5, 60, None], [574.0911170635113, 560.5, 795.0911170635113, 581.5, 60, ''], [824.5911170635113, 561.0, 2704.5911170635113, 581.0, 60, None], [81.63605036184475, 583.0, 161.63605036184475, 599.0, 61, 'A0A3D5I491'], [334.0911170635114, 580.5, 385.0911170635114, 601.5, 61, None], [414.0911170635114, 580.5, 465.0911170635114, 601.5, 61, None], [494.0911170635114, 580.5, 545.0911170635113, 601.5, 61, None], [574.0911170635113, 580.5, 795.0911170635113, 601.5, 61, ''], [824.5911170635113, 581.0, 2704.5911170635113, 601.0, 61, None], [95.19452204253534, 603.0, 180.19452204253534, 619.0, 63, 'A0A937HCJ9'], [334.0911170635114, 600.5, 385.0911170635114, 621.5, 63, None], [414.0911170635114, 600.5, 465.0911170635114, 621.5, 63, None], [494.0911170635114, 600.5, 545.0911170635113, 621.5, 63, None], [574.0911170635113, 600.5, 795.0911170635113, 621.5, 63, ''], [824.5911170635113, 601.0, 2704.5911170635113, 621.0, 63, None], [101.1515138957092, 623.0, 186.1515138957092, 639.0, 64, 'A0A920EU14'], [334.0911170635114, 620.5, 385.0911170635114, 641.5, 64, None], [414.0911170635114, 620.5, 465.0911170635114, 641.5, 64, None], [494.0911170635114, 620.5, 545.0911170635113, 641.5, 64, None], [574.0911170635113, 620.5, 795.0911170635113, 641.5, 64, ''], [824.5911170635113, 621.0, 2704.5911170635113, 641.0, 64, None], [103.5382589576662, 643.0, 155.5382589576662, 659.0, 69, 'V5V5P1'], [334.0911170635114, 640.5, 385.0911170635114, 661.5, 69, None], [414.0911170635114, 640.5, 465.0911170635114, 661.5, 69, None], [494.0911170635114, 640.5, 545.0911170635113, 661.5, 69, None], [574.0911170635113, 640.5, 795.0911170635113, 661.5, 69, ''], [824.5911170635113, 641.0, 2704.5911170635113, 661.0, 69, None], [91.05606838930704, 663.0, 179.05606838930703, 679.0, 70, 'A0A968HGV7'], [334.0911170635114, 660.5, 385.0911170635114, 681.5, 70, None], [414.0911170635114, 660.5, 465.0911170635114, 681.5, 70, None], [494.0911170635114, 660.5, 545.0911170635113, 681.5, 70, None], [574.0911170635113, 660.5, 795.0911170635113, 681.5, 70, ''], [824.5911170635113, 661.0, 2704.5911170635113, 681.0, 70, None], [91.72193797774793, 683.0, 186.72193797774793, 699.0, 72, 'A0A928WWG1'], [334.0911170635114, 680.5, 385.0911170635114, 701.5, 72, None], [414.0911170635114, 680.5, 465.0911170635114, 701.5, 72, None], [494.0911170635114, 680.5, 545.0911170635113, 701.5, 72, None], [574.0911170635113, 680.5, 795.0911170635113, 701.5, 72, ''], [824.5911170635113, 681.0, 2704.5911170635113, 701.0, 72, None], [164.16531836120765, 703.0, 245.16531836120765, 719.0, 74, 'A0A7X4JJ53'], [334.0911170635114, 700.5, 385.0911170635114, 721.5, 74, None], [414.0911170635114, 700.5, 465.0911170635114, 721.5, 74, None], [494.0911170635114, 700.5, 545.0911170635113, 721.5, 74, None], [574.0911170635113, 700.5, 795.0911170635113, 721.5, 74, ''], [824.5911170635113, 701.0, 2704.5911170635113, 721.0, 74, None], [173.25510121550843, 723.0, 262.25510121550843, 739.0, 76, 'A0A7G8HCL9'], [334.0911170635114, 720.5, 385.0911170635114, 741.5, 76, None], [414.0911170635114, 720.5, 465.0911170635114, 741.5, 76, None], [494.0911170635114, 720.5, 545.0911170635113, 741.5, 76, None], [574.0911170635113, 720.5, 795.0911170635113, 741.5, 76, ''], [824.5911170635113, 721.0, 2704.5911170635113, 741.0, 76, None], [196.7522643931727, 743.0, 283.7522643931727, 759.0, 78, 'A0A7G8FV48'], [334.0911170635114, 740.5, 385.0911170635114, 761.5, 78, None], [414.0911170635114, 740.5, 465.0911170635114, 761.5, 78, None], [494.0911170635114, 740.5, 545.0911170635113, 761.5, 78, None], [574.0911170635113, 740.5, 795.0911170635113, 761.5, 78, ''], [824.5911170635113, 741.0, 2704.5911170635113, 761.0, 78, None], [241.00000000000006, 763.0, 295.00000000000006, 779.0, 80, 'Q7VC36'], [334.0911170635114, 760.5, 385.0911170635114, 781.5, 80, None], [414.0911170635114, 760.5, 465.0911170635114, 781.5, 80, None], [494.0911170635114, 760.5, 545.0911170635113, 781.5, 80, None], [574.0911170635113, 760.5, 795.0911170635113, 781.5, 80, ''], [824.5911170635113, 761.0, 2704.5911170635113, 781.0, 80, None], [237.5911170635115, 783.0, 319.5911170635115, 799.0, 81, 'A0A2E6GI30'], [334.0911170635114, 780.5, 385.0911170635114, 801.5, 81, None], [414.0911170635114, 780.5, 465.0911170635114, 801.5, 81, None], [494.0911170635114, 780.5, 545.0911170635113, 801.5, 81, None], [574.0911170635113, 780.5, 795.0911170635113, 801.5, 81, ''], [824.5911170635113, 781.0, 2704.5911170635113, 801.0, 81, None], [133.77895632343905, 803.0, 245.77895632343905, 819.0, 88, 'WP_006013756.1'], [334.0911170635114, 800.5, 385.0911170635114, 821.5, 88, None], [414.0911170635114, 800.5, 465.0911170635114, 821.5, 88, None], [494.0911170635114, 800.5, 545.0911170635113, 821.5, 88, None], [574.0911170635113, 800.5, 795.0911170635113, 821.5, 88, ''], [824.5911170635113, 801.0, 2704.5911170635113, 821.0, 88, None], [130.9768724255468, 823.0, 221.9768724255468, 839.0, 89, 'A0A9Q9BTM7'], [334.0911170635114, 820.5, 385.0911170635114, 841.5, 89, None], [414.0911170635114, 820.5, 465.0911170635114, 841.5, 89, None], [494.0911170635114, 820.5, 545.0911170635113, 841.5, 89, None], [574.0911170635113, 820.5, 795.0911170635113, 841.5, 89, ''], [824.5911170635113, 821.0, 2704.5911170635113, 841.0, 89, None], [119.53748434153799, 843.0, 172.537484341538, 859.0, 90, 'A5CC53'], [334.0911170635114, 840.5, 385.0911170635114, 861.5, 90, None], [414.0911170635114, 840.5, 465.0911170635114, 861.5, 90, None], [494.0911170635114, 840.5, 545.0911170635113, 861.5, 90, None], [574.0911170635113, 840.5, 795.0911170635113, 861.5, 90, ''], [824.5911170635113, 841.0, 2704.5911170635113, 861.0, 90, None], [133.8426975957604, 863.0, 228.8426975957604, 879.0, 93, 'A0A2E6MQW9'], [334.0911170635114, 860.5, 385.0911170635114, 881.5, 93, None], [414.0911170635114, 860.5, 465.0911170635114, 881.5, 93, None], [494.0911170635114, 860.5, 545.0911170635113, 881.5, 93, None], [574.0911170635113, 860.5, 795.0911170635113, 881.5, 93, ''], [824.5911170635113, 861.0, 2704.5911170635113, 881.0, 93, None], [131.47992243082945, 883.0, 218.47992243082945, 899.0, 94, 'A0A2D7HT41'], [334.0911170635114, 880.5, 385.0911170635114, 901.5, 94, None], [414.0911170635114, 880.5, 465.0911170635114, 901.5, 94, None], [494.0911170635114, 880.5, 545.0911170635113, 901.5, 94, None], [574.0911170635113, 880.5, 795.0911170635113, 901.5, 94, ''], [824.5911170635113, 881.0, 2704.5911170635113, 901.0, 94, None], [132.0405354526725, 903.0, 220.0405354526725, 919.0, 95, 'A0A368DND1'], [334.0911170635114, 900.5, 385.0911170635114, 921.5, 95, None], [414.0911170635114, 900.5, 465.0911170635114, 921.5, 95, None], [494.0911170635114, 900.5, 545.0911170635113, 921.5, 95, None], [574.0911170635113, 900.5, 795.0911170635113, 921.5, 95, ''], [824.5911170635113, 901.0, 2704.5911170635113, 921.0, 95, None], [113.19149724925089, 923.0, 197.1914972492509, 939.0, 97, 'A0A2E9B755'], [334.0911170635114, 920.5, 385.0911170635114, 941.5, 97, None], [414.0911170635114, 920.5, 465.0911170635114, 941.5, 97, None], [494.0911170635114, 920.5, 545.0911170635113, 941.5, 97, None], [574.0911170635113, 920.5, 795.0911170635113, 941.5, 97, ''], [824.5911170635113, 921.0, 2704.5911170635113, 941.0, 97, None], [117.03056822031948, 943.0, 168.03056822031948, 959.0, 98, 'F7XV34'], [334.0911170635114, 940.5, 385.0911170635114, 961.5, 98, None], [414.0911170635114, 940.5, 465.0911170635114, 961.5, 98, None], [494.0911170635114, 940.5, 545.0911170635113, 961.5, 98, None], [574.0911170635113, 940.5, 795.0911170635113, 961.5, 98, ''], [824.5911170635113, 941.0, 2704.5911170635113, 961.0, 98, None], [96.74205951848964, 963.0, 192.74205951848964, 979.0, 100, 'A0A0S6WWD7'], [334.0911170635113, 960.5, 385.0911170635113, 981.5, 100, None], [414.0911170635113, 960.5, 465.0911170635113, 981.5, 100, None], [494.0911170635113, 960.5, 545.0911170635113, 981.5, 100, None], [574.0911170635113, 960.5, 795.0911170635113, 981.5, 100, ''], [824.5911170635113, 961.0, 2704.5911170635113, 981.0, 100, None], [99.53346360706666, 983.0, 186.53346360706666, 999.0, 103, 'A0A9C9NJS2'], [334.0911170635114, 980.5, 385.0911170635114, 1001.5, 103, None], [414.0911170635114, 980.5, 465.0911170635114, 1001.5, 103, None], [494.0911170635114, 980.5, 545.0911170635113, 1001.5, 103, None], [574.0911170635113, 980.5, 795.0911170635113, 1001.5, 103, ''], [824.5911170635113, 981.0, 2704.5911170635113, 1001.0, 103, None], [100.1350427804442, 1003.0, 182.1350427804442, 1019.0, 104, 'A0A6J4MIE4'], [334.0911170635114, 1000.5, 385.0911170635114, 1021.5, 104, None], [414.0911170635114, 1000.5, 465.0911170635114, 1021.5, 104, None], [494.0911170635114, 1000.5, 545.0911170635113, 1021.5, 104, None], [574.0911170635113, 1000.5, 795.0911170635113, 1021.5, 104, ''], [824.5911170635113, 1001.0, 2704.5911170635113, 1021.0, 104, None], [90.13004105337117, 1023.0, 142.13004105337117, 1039.0, 106, 'F1YU52'], [334.0911170635114, 1020.5, 385.0911170635114, 1041.5, 106, None], [414.0911170635114, 1020.5, 465.0911170635114, 1041.5, 106, None], [494.0911170635114, 1020.5, 545.0911170635113, 1041.5, 106, None], [574.0911170635113, 1020.5, 795.0911170635113, 1041.5, 106, ''], [824.5911170635113, 1021.0, 2704.5911170635113, 1041.0, 106, None], [98.14473076908968, 1043.0, 191.14473076908968, 1059.0, 108, 'A0A7W6REH1'], [334.0911170635114, 1040.5, 385.0911170635114, 1061.5, 108, None], [414.0911170635114, 1040.5, 465.0911170635114, 1061.5, 108, None], [494.0911170635114, 1040.5, 545.0911170635113, 1061.5, 108, None], [574.0911170635113, 1040.5, 795.0911170635113, 1061.5, 108, ''], [824.5911170635113, 1041.0, 2704.5911170635113, 1061.0, 108, None], [93.98819140844643, 1063.0, 177.98819140844643, 1079.0, 109, 'A0A537Q151'], [334.0911170635114, 1060.5, 385.0911170635114, 1081.5, 109, None], [414.0911170635114, 1060.5, 465.0911170635114, 1081.5, 109, None], [494.0911170635114, 1060.5, 545.0911170635113, 1081.5, 109, None], [574.0911170635113, 1060.5, 795.0911170635113, 1081.5, 109, ''], [824.5911170635113, 1061.0, 2704.5911170635113, 1081.0, 109, None], [96.067249201659, 1083.0, 152.067249201659, 1099.0, 111, 'M4VYX4'], [334.0911170635114, 1080.5, 385.0911170635114, 1101.5, 111, None], [414.0911170635114, 1080.5, 465.0911170635114, 1101.5, 111, None], [494.0911170635114, 1080.5, 545.0911170635113, 1101.5, 111, None], [574.0911170635113, 1080.5, 795.0911170635113, 1101.5, 111, ''], [824.5911170635113, 1081.0, 2704.5911170635113, 1101.0, 111, None], [104.67320375953419, 1103.0, 187.6732037595342, 1119.0, 114, 'A0A934V087'], [334.0911170635114, 1100.5, 385.0911170635114, 1121.5, 114, None], [414.0911170635114, 1100.5, 465.0911170635114, 1121.5, 114, None], [494.0911170635114, 1100.5, 545.0911170635113, 1121.5, 114, None], [574.0911170635113, 1100.5, 795.0911170635113, 1121.5, 114, ''], [824.5911170635113, 1101.0, 2704.5911170635113, 1121.0, 114, None], [137.82919777883342, 1123.0, 225.82919777883342, 1139.0, 116, 'A0A9E4M2V1'], [334.0911170635114, 1120.5, 385.0911170635114, 1141.5, 116, None], [414.0911170635114, 1120.5, 465.0911170635114, 1141.5, 116, None], [494.0911170635114, 1120.5, 545.0911170635113, 1141.5, 116, None], [574.0911170635113, 1120.5, 795.0911170635113, 1141.5, 116, ''], [824.5911170635113, 1121.0, 2704.5911170635113, 1141.0, 116, None], [137.56507136986707, 1143.0, 228.56507136986707, 1159.0, 117, 'A0A2P6G0W4'], [334.0911170635114, 1140.5, 385.0911170635114, 1161.5, 117, None], [414.0911170635114, 1140.5, 465.0911170635114, 1161.5, 117, None], [494.0911170635114, 1140.5, 545.0911170635113, 1161.5, 117, None], [574.0911170635113, 1140.5, 795.0911170635113, 1161.5, 117, ''], [824.5911170635113, 1141.0, 2704.5911170635113, 1161.0, 117, None], [134.6498246541341, 1163.0, 214.6498246541341, 1179.0, 119, 'A0A6I7PAY9'], [334.0911170635114, 1160.5, 385.0911170635114, 1181.5, 119, None], [414.0911170635114, 1160.5, 465.0911170635114, 1181.5, 119, None], [494.0911170635114, 1160.5, 545.0911170635113, 1181.5, 119, None], [574.0911170635113, 1160.5, 795.0911170635113, 1181.5, 119, ''], [824.5911170635113, 1161.0, 2704.5911170635113, 1181.0, 119, None], [127.99993787548479, 1183.0, 211.9999378754848, 1199.0, 121, 'A0A961Z6A8'], [334.0911170635114, 1180.5, 385.0911170635114, 1201.5, 121, None], [414.0911170635114, 1180.5, 465.0911170635114, 1201.5, 121, None], [494.0911170635114, 1180.5, 545.0911170635113, 1201.5, 121, None], [574.0911170635113, 1180.5, 795.0911170635113, 1201.5, 121, ''], [824.5911170635113, 1181.0, 2704.5911170635113, 1201.0, 121, None], [124.8889532697455, 1203.0, 209.8889532697455, 1219.0, 123, 'A0A3D3B500'], [334.0911170635114, 1200.5, 385.0911170635114, 1221.5, 123, None], [414.0911170635114, 1200.5, 465.0911170635114, 1221.5, 123, None], [494.0911170635114, 1200.5, 545.0911170635113, 1221.5, 123, None], [574.0911170635113, 1200.5, 795.0911170635113, 1221.5, 123, ''], [824.5911170635113, 1201.0, 2704.5911170635113, 1221.0, 123, None], [181.97604793875382, 1223.0, 293.9760479387538, 1239.0, 129, 'WP_069055331.1'], [334.0911170635114, 1220.5, 385.0911170635114, 1241.5, 129, None], [414.0911170635114, 1220.5, 465.0911170635114, 1241.5, 129, None], [494.0911170635114, 1220.5, 545.0911170635113, 1241.5, 129, None], [574.0911170635113, 1220.5, 795.0911170635113, 1241.5, 129, ''], [824.5911170635113, 1221.0, 2704.5911170635113, 1241.0, 129, None], [176.60887367152898, 1243.0, 287.60887367152895, 1259.0, 130, 'WP_065115910.1'], [334.0911170635114, 1240.5, 385.0911170635114, 1261.5, 130, None], [414.0911170635114, 1240.5, 465.0911170635114, 1261.5, 130, None], [494.0911170635114, 1240.5, 545.0911170635113, 1261.5, 130, None], [574.0911170635113, 1240.5, 795.0911170635113, 1261.5, 130, ''], [824.5911170635113, 1241.0, 2704.5911170635113, 1261.0, 130, None], [158.47991389044586, 1263.0, 247.47991389044586, 1279.0, 131, 'A0A0H3AUV1'], [334.0911170635114, 1260.5, 385.0911170635114, 1281.5, 131, None], [414.0911170635114, 1260.5, 465.0911170635114, 1281.5, 131, None], [494.0911170635114, 1260.5, 545.0911170635113, 1281.5, 131, None], [574.0911170635113, 1260.5, 795.0911170635113, 1281.5, 131, ''], [824.5911170635113, 1261.0, 2704.5911170635113, 1281.0, 131, None], [141.62590960901167, 1283.0, 229.62590960901167, 1299.0, 132, 'A0A7V7TXH3'], [334.0911170635114, 1280.5, 385.0911170635114, 1301.5, 132, None], [414.0911170635114, 1280.5, 465.0911170635114, 1301.5, 132, None], [494.0911170635114, 1280.5, 545.0911170635113, 1301.5, 132, None], [574.0911170635113, 1280.5, 795.0911170635113, 1301.5, 132, ''], [824.5911170635113, 1281.0, 2704.5911170635113, 1301.0, 132, None], [128.76278941170483, 1303.0, 212.76278941170483, 1319.0, 133, 'A0A963SB80'], [334.0911170635114, 1300.5, 385.0911170635114, 1321.5, 133, None], [414.0911170635114, 1300.5, 465.0911170635114, 1321.5, 133, None], [494.0911170635114, 1300.5, 545.0911170635113, 1321.5, 133, None], [574.0911170635113, 1300.5, 795.0911170635113, 1321.5, 133, ''], [824.5911170635113, 1301.0, 2704.5911170635113, 1321.0, 133, None], [133.49496996216834, 1323.0, 215.49496996216834, 1339.0, 134, 'A0A7C5ITS6'], [334.0911170635114, 1320.5, 385.0911170635114, 1341.5, 134, None], [414.0911170635114, 1320.5, 465.0911170635114, 1341.5, 134, None], [494.0911170635114, 1320.5, 545.0911170635113, 1341.5, 134, None], [574.0911170635113, 1320.5, 795.0911170635113, 1341.5, 134, ''], [824.5911170635113, 1321.0, 2704.5911170635113, 1341.0, 134, None], [75.23287410114563, 1343.0, 169.23287410114563, 1359.0, 136, 'A0A2M7HAW0'], [334.09111706351143, 1340.5, 385.09111706351143, 1361.5, 136, None], [414.09111706351143, 1340.5, 465.09111706351143, 1361.5, 136, None], [494.09111706351143, 1340.5, 545.0911170635114, 1361.5, 136, None], [574.0911170635114, 1340.5, 795.0911170635114, 1361.5, 136, ''], [824.5911170635114, 1341.0, 2704.5911170635113, 1361.0, 136, None], [111.76288659580271, 1363.0, 197.7628865958027, 1379.0, 143, 'A0A060UU85'], [334.0911170635113, 1360.5, 385.0911170635113, 1381.5, 143, None], [414.0911170635113, 1360.5, 465.0911170635113, 1381.5, 143, None], [494.0911170635113, 1360.5, 545.0911170635113, 1381.5, 143, None], [574.0911170635113, 1360.5, 795.0911170635113, 1381.5, 143, ''], [824.5911170635113, 1361.0, 2704.5911170635113, 1381.0, 143, None], [93.10488502413325, 1383.0, 183.10488502413324, 1399.0, 144, 'A0A2D7GSE4'], [334.0911170635113, 1380.5, 385.0911170635113, 1401.5, 144, None], [414.0911170635113, 1380.5, 465.0911170635113, 1401.5, 144, None], [494.0911170635113, 1380.5, 545.0911170635113, 1401.5, 144, None], [574.0911170635113, 1380.5, 795.0911170635113, 1401.5, 144, ''], [824.5911170635113, 1381.0, 2704.5911170635113, 1401.0, 144, None], [94.90850329584093, 1403.0, 205.90850329584094, 1419.0, 145, 'WP_011638592.1'], [334.0911170635114, 1400.5, 385.0911170635114, 1421.5, 145, None], [414.0911170635114, 1400.5, 465.0911170635114, 1421.5, 145, None], [494.0911170635114, 1400.5, 545.0911170635113, 1421.5, 145, None], [574.0911170635113, 1400.5, 795.0911170635113, 1421.5, 145, ''], [824.5911170635113, 1401.0, 2704.5911170635113, 1421.0, 145, None], [133.84625141267495, 1423.0, 212.84625141267495, 1439.0, 151, 'A0A949I8K3'], [334.0911170635114, 1420.5, 385.0911170635114, 1441.5, 151, None], [414.0911170635114, 1420.5, 465.0911170635114, 1441.5, 151, None], [494.0911170635114, 1420.5, 545.0911170635113, 1441.5, 151, None], [574.0911170635113, 1420.5, 795.0911170635113, 1441.5, 151, ''], [824.5911170635113, 1421.0, 2704.5911170635113, 1441.0, 151, None], [113.974488269472, 1443.0, 158.974488269472, 1459.0, 152, 'V2IL94'], [334.0911170635114, 1440.5, 385.0911170635114, 1461.5, 152, None], [414.0911170635114, 1440.5, 465.0911170635114, 1461.5, 152, None], [494.0911170635114, 1440.5, 545.0911170635113, 1461.5, 152, None], [574.0911170635113, 1440.5, 795.0911170635113, 1461.5, 152, ''], [824.5911170635113, 1441.0, 2704.5911170635113, 1461.0, 152, None], [149.26018940594327, 1463.0, 237.26018940594327, 1479.0, 154, 'A0A3Q8ERL4'], [334.0911170635114, 1460.5, 385.0911170635114, 1481.5, 154, None], [414.0911170635114, 1460.5, 465.0911170635114, 1481.5, 154, None], [494.0911170635114, 1460.5, 545.0911170635113, 1481.5, 154, None], [574.0911170635113, 1460.5, 795.0911170635113, 1481.5, 154, ''], [824.5911170635113, 1461.0, 2704.5911170635113, 1481.0, 154, None], [136.69560959367323, 1483.0, 225.69560959367323, 1499.0, 155, 'A0A4S1EGP2'], [334.0911170635114, 1480.5, 385.0911170635114, 1501.5, 155, None], [414.0911170635114, 1480.5, 465.0911170635114, 1501.5, 155, None], [494.0911170635114, 1480.5, 545.0911170635113, 1501.5, 155, None], [574.0911170635113, 1480.5, 795.0911170635113, 1501.5, 155, ''], [824.5911170635113, 1481.0, 2704.5911170635113, 1501.0, 155, None], [134.0192653213639, 1503.0, 218.0192653213639, 1519.0, 156, 'A0A949FYL3'], [334.0911170635114, 1500.5, 385.0911170635114, 1521.5, 156, None], [414.0911170635114, 1500.5, 465.0911170635114, 1521.5, 156, None], [494.0911170635114, 1500.5, 545.0911170635113, 1521.5, 156, None], [574.0911170635113, 1500.5, 795.0911170635113, 1521.5, 156, ''], [824.5911170635113, 1501.0, 2704.5911170635113, 1521.0, 156, None], [121.02756879929359, 1523.0, 213.0275687992936, 1539.0, 158, 'A0A2U2AQM4'], [334.0911170635114, 1520.5, 385.0911170635114, 1541.5, 158, None], [414.0911170635114, 1520.5, 465.0911170635114, 1541.5, 158, None], [494.0911170635114, 1520.5, 545.0911170635113, 1541.5, 158, None], [574.0911170635113, 1520.5, 795.0911170635113, 1541.5, 158, ''], [824.5911170635113, 1521.0, 2704.5911170635113, 1541.0, 158, None], [126.02291155380982, 1543.0, 214.02291155380982, 1559.0, 159, 'A0A162UUP2'], [334.0911170635114, 1540.5, 385.0911170635114, 1561.5, 159, None], [414.0911170635114, 1540.5, 465.0911170635114, 1561.5, 159, None], [494.0911170635114, 1540.5, 545.0911170635113, 1561.5, 159, None], [574.0911170635113, 1540.5, 795.0911170635113, 1561.5, 159, ''], [824.5911170635113, 1541.0, 2704.5911170635113, 1561.0, 159, None], [109.16836756710644, 1563.0, 164.16836756710643, 1579.0, 160, 'Q8D2C3'], [334.0911170635114, 1560.5, 385.0911170635114, 1581.5, 160, None], [414.0911170635114, 1560.5, 465.0911170635114, 1581.5, 160, None], [494.0911170635114, 1560.5, 545.0911170635113, 1581.5, 160, None], [574.0911170635113, 1560.5, 795.0911170635113, 1581.5, 160, ''], [824.5911170635113, 1561.0, 2704.5911170635113, 1581.0, 160, None], [120.18326523689484, 1583.0, 206.18326523689484, 1599.0, 163, 'A0A0H4IWZ2'], [334.0911170635114, 1580.5, 385.0911170635114, 1601.5, 163, None], [414.0911170635114, 1580.5, 465.0911170635114, 1601.5, 163, None], [494.0911170635114, 1580.5, 545.0911170635113, 1601.5, 163, None], [574.0911170635113, 1580.5, 795.0911170635113, 1601.5, 163, ''], [824.5911170635113, 1581.0, 2704.5911170635113, 1601.0, 163, None], [113.13440049814065, 1603.0, 197.13440049814065, 1619.0, 164, 'A0A352C790'], [334.0911170635114, 1600.5, 385.0911170635114, 1621.5, 164, None], [414.0911170635114, 1600.5, 465.0911170635114, 1621.5, 164, None], [494.0911170635114, 1600.5, 545.0911170635113, 1621.5, 164, None], [574.0911170635113, 1600.5, 795.0911170635113, 1621.5, 164, ''], [824.5911170635113, 1601.0, 2704.5911170635113, 1621.0, 164, None], [112.47868359962476, 1623.0, 203.47868359962476, 1639.0, 166, 'A0A1G0HAR5'], [334.0911170635114, 1620.5, 385.0911170635114, 1641.5, 166, None], [414.0911170635114, 1620.5, 465.0911170635114, 1641.5, 166, None], [494.0911170635114, 1620.5, 545.0911170635113, 1641.5, 166, None], [574.0911170635113, 1620.5, 795.0911170635113, 1641.5, 166, ''], [824.5911170635113, 1621.0, 2704.5911170635113, 1641.0, 166, None], [105.54516372334061, 1643.0, 192.5451637233406, 1659.0, 167, 'A0A8T3SFN6'], [334.0911170635114, 1640.5, 385.0911170635114, 1661.5, 167, None], [414.0911170635114, 1640.5, 465.0911170635114, 1661.5, 167, None], [494.0911170635114, 1640.5, 545.0911170635113, 1661.5, 167, None], [574.0911170635113, 1640.5, 795.0911170635113, 1661.5, 167, ''], [824.5911170635113, 1641.0, 2704.5911170635113, 1661.0, 167, None], [101.41471968467957, 1663.0, 183.41471968467957, 1679.0, 169, 'A0A930UUI5'], [334.0911170635114, 1660.5, 385.0911170635114, 1681.5, 169, None], [414.0911170635114, 1660.5, 465.0911170635114, 1681.5, 169, None], [494.0911170635114, 1660.5, 545.0911170635113, 1681.5, 169, None], [574.0911170635113, 1660.5, 795.0911170635113, 1681.5, 169, ''], [824.5911170635113, 1661.0, 2704.5911170635113, 1681.0, 169, None], [110.3366588277066, 1683.0, 201.3366588277066, 1699.0, 171, 'A0A8B5WFX3'], [334.0911170635114, 1680.5, 385.0911170635114, 1701.5, 171, None], [414.0911170635114, 1680.5, 465.0911170635114, 1701.5, 171, None], [494.0911170635114, 1680.5, 545.0911170635113, 1701.5, 171, None], [574.0911170635113, 1680.5, 795.0911170635113, 1701.5, 171, ''], [824.5911170635113, 1681.0, 2704.5911170635113, 1701.0, 171, None], [101.32480977817511, 1703.0, 187.3248097781751, 1719.0, 172, 'A0A0S2FUL2'], [334.0911170635114, 1700.5, 385.0911170635114, 1721.5, 172, None], [414.0911170635114, 1700.5, 465.0911170635114, 1721.5, 172, None], [494.0911170635114, 1700.5, 545.0911170635113, 1721.5, 172, None], [574.0911170635113, 1700.5, 795.0911170635113, 1721.5, 172, ''], [824.5911170635113, 1701.0, 2704.5911170635113, 1721.0, 172, None], [74.8302658443396, 1723.0, 165.8302658443396, 1739.0, 175, 'A0A946UWN3'], [334.0911170635114, 1720.5, 385.0911170635114, 1741.5, 175, None], [414.0911170635114, 1720.5, 465.0911170635114, 1741.5, 175, None], [494.0911170635114, 1720.5, 545.0911170635113, 1741.5, 175, None], [574.0911170635113, 1720.5, 795.0911170635113, 1741.5, 175, ''], [824.5911170635113, 1721.0, 2704.5911170635113, 1741.0, 175, None], [106.80841572099877, 1743.0, 190.80841572099877, 1759.0, 178, 'A0A1Y5FT18'], [334.0911170635114, 1740.5, 385.0911170635114, 1761.5, 178, None], [414.0911170635114, 1740.5, 465.0911170635114, 1761.5, 178, None], [494.0911170635114, 1740.5, 545.0911170635113, 1761.5, 178, None], [574.0911170635113, 1740.5, 795.0911170635113, 1761.5, 178, ''], [824.5911170635113, 1741.0, 2704.5911170635113, 1761.0, 178, None], [101.02978855545499, 1763.0, 186.02978855545499, 1779.0, 179, 'A0A293NK74'], [334.0911170635114, 1760.5, 385.0911170635114, 1781.5, 179, None], [414.0911170635114, 1760.5, 465.0911170635114, 1781.5, 179, None], [494.0911170635114, 1760.5, 545.0911170635113, 1781.5, 179, None], [574.0911170635113, 1760.5, 795.0911170635113, 1781.5, 179, ''], [824.5911170635113, 1761.0, 2704.5911170635113, 1781.0, 179, None], [89.89664682616238, 1783.0, 174.8966468261624, 1799.0, 180, 'A0A448GYJ8'], [334.0911170635114, 1780.5, 385.0911170635114, 1801.5, 180, None], [414.0911170635114, 1780.5, 465.0911170635114, 1801.5, 180, None], [494.0911170635114, 1780.5, 545.0911170635113, 1801.5, 180, None], [574.0911170635113, 1780.5, 795.0911170635113, 1801.5, 180, ''], [824.5911170635113, 1781.0, 2704.5911170635113, 1801.0, 180, None], [95.88339366347225, 1803.0, 183.88339366347225, 1819.0, 181, 'A0A2D8R9K3'], [334.0911170635114, 1800.5, 385.0911170635114, 1821.5, 181, None], [414.0911170635114, 1800.5, 465.0911170635114, 1821.5, 181, None], [494.0911170635114, 1800.5, 545.0911170635113, 1821.5, 181, None], [574.0911170635113, 1800.5, 795.0911170635113, 1821.5, 181, ''], [824.5911170635113, 1801.0, 2704.5911170635113, 1821.0, 181, None], [52.75604070443793, 1823.0, 142.75604070443794, 1839.0, 183, 'A0A368HGG1'], [334.0911170635114, 1820.5, 385.0911170635114, 1841.5, 183, None], [414.0911170635114, 1820.5, 465.0911170635114, 1841.5, 183, None], [494.0911170635114, 1820.5, 545.0911170635113, 1841.5, 183, None], [574.0911170635113, 1820.5, 795.0911170635113, 1841.5, 183, ''], [824.5911170635113, 1821.0, 2704.5911170635113, 1841.0, 183, None], [94.65121385551768, 1843.0, 146.65121385551768, 1859.0, 184, 'Q493E4'], [334.0911170635114, 1840.5, 385.0911170635114, 1861.5, 184, None], [414.0911170635114, 1840.5, 465.0911170635114, 1861.5, 184, None], [494.0911170635114, 1840.5, 545.0911170635113, 1861.5, 184, None], [574.0911170635113, 1840.5, 795.0911170635113, 1861.5, 184, ''], [824.5911170635113, 1841.0, 2704.5911170635113, 1861.0, 184, None], [52.69111542596403, 1863.0, 138.69111542596403, 1879.0, 185, 'A0A8T6HYL4'], [334.0911170635114, 1860.5, 385.0911170635114, 1881.5, 185, None], [414.0911170635114, 1860.5, 465.0911170635114, 1881.5, 185, None], [494.0911170635114, 1860.5, 545.0911170635113, 1881.5, 185, None], [574.0911170635113, 1860.5, 795.0911170635113, 1881.5, 185, ''], [824.5911170635113, 1861.0, 2704.5911170635113, 1881.0, 185, None]], 'node_areas': {0: [1.0, 1.0, 319.5911170635114, 1881.0], 1: [1.0, 1.0, 133.39703792824767, 21.0], 2: [1.0, 21.0, 319.5911170635114, 1861.0], 3: [4.624744280402339, 21.0, 134.29873024521362, 41.0], 4: [4.624744280402339, 41.0, 319.5911170635114, 1861.0], 5: [9.655570319407495, 41.0, 319.5911170635114, 1821.0], 6: [15.906700223117994, 41.0, 233.73683571326336, 401.0], 7: [18.00457647396516, 41.0, 169.21070631019037, 101.0], 8: [22.773833021784107, 41.0, 169.21070631019037, 81.0], 9: [30.120053670628703, 41.0, 156.17999088159766, 61.0], 10: [30.120053670628703, 61.0, 169.21070631019037, 81.0], 11: [22.773833021784107, 81.0, 157.81862734653436, 101.0], 12: [18.00457647396516, 101.0, 233.73683571326336, 401.0], 13: [19.297509200806992, 101.0, 233.73683571326336, 321.0], 14: [20.66190626273601, 101.0, 171.58774593684677, 161.0], 15: [41.789534754445334, 101.0, 147.63611267800852, 121.0], 16: [41.789534754445334, 121.0, 171.58774593684677, 161.0], 17: [57.205352505149975, 121.0, 171.58774593684677, 141.0], 18: [57.205352505149975, 141.0, 163.07004003945013, 161.0], 19: [20.66190626273601, 161.0, 233.73683571326336, 321.0], 20: [42.9808896808375, 161.0, 195.92607846338123, 221.0], 21: [47.32900261922068, 161.0, 176.33794882987962, 181.0], 22: [47.32900261922068, 181.0, 195.92607846338126, 221.0], 23: [65.08765257137162, 181.0, 175.12938391852805, 201.0], 24: [65.08765257137162, 201.0, 195.92607846338126, 221.0], 25: [42.9808896808375, 221.0, 233.73683571326336, 321.0], 26: [59.898437349742665, 221.0, 223.44394991552483, 261.0], 27: [76.36357979212683, 221.0, 223.4439499155248, 241.0], 28: [76.36357979212683, 241.0, 149.0085967091028, 261.0], 29: [59.898437349742665, 261.0, 233.73683571326336, 321.0], 30: [77.29386892879258, 261.0, 216.4685082592486, 281.0], 31: [77.29386892879258, 281.0, 233.73683571326336, 321.0], 32: [92.3323854525269, 281.0, 233.73683571326336, 301.0], 33: [92.3323854525269, 301.0, 195.09632634509154, 321.0], 34: [19.297509200806992, 321.0, 175.90300339782135, 401.0], 35: [22.398966722552228, 321.0, 175.90300339782135, 361.0], 36: [29.925266754558336, 321.0, 175.90300339782135, 341.0], 37: [29.925266754558336, 341.0, 145.03298647692282, 361.0], 38: [22.398966722552228, 361.0, 145.68304391991373, 401.0], 39: [25.171496492153622, 361.0, 94.94535611287965, 381.0], 40: [25.171496492153622, 381.0, 145.68304391991376, 401.0], 41: [15.906700223117994, 401.0, 319.5911170635114, 1821.0], 42: [17.377756877467363, 401.0, 218.12135516190224, 641.0], 43: [22.616188632697376, 401.0, 218.12135516190224, 561.0], 44: [27.322608016762942, 401.0, 179.046410168222, 421.0], 45: [27.322608016762942, 421.0, 218.12135516190227, 561.0], 46: [42.62313321774258, 421.0, 218.12135516190224, 521.0], 47: [59.179112879572095, 421.0, 218.12135516190224, 481.0], 48: [63.818643967581174, 421.0, 218.12135516190224, 461.0], 49: [89.05170922581385, 421.0, 215.98000456878435, 441.0], 50: [89.05170922581385, 441.0, 218.12135516190224, 461.0], 51: [63.818643967581174, 461.0, 196.11896497634942, 481.0], 52: [59.179112879572095, 481.0, 195.42309576309927, 521.0], 53: [61.10354384914775, 481.0, 195.42309576309924, 501.0], 54: [61.10354384914775, 501.0, 184.7161779997671, 521.0], 55: [42.62313321774258, 521.0, 166.88477339706446, 561.0], 56: [46.53651810956128, 521.0, 164.46992635190594, 541.0], 57: [46.53651810956128, 541.0, 166.88477339706446, 561.0], 58: [22.616188632697376, 561.0, 186.1515138957092, 641.0], 59: [32.669814709379864, 561.0, 166.0279516673895, 601.0], 60: [40.45343843537956, 561.0, 166.0279516673895, 581.0], 61: [40.45343843537956, 581.0, 161.63605036184475, 601.0], 62: [32.669814709379864, 601.0, 186.1515138957092, 641.0], 63: [67.57722316048435, 601.0, 180.19452204253534, 621.0], 64: [67.57722316048435, 621.0, 186.1515138957092, 641.0], 65: [17.377756877467363, 641.0, 319.59111706351143, 1821.0], 66: [21.485891084844795, 641.0, 319.59111706351143, 1341.0], 67: [24.304663966674365, 641.0, 319.59111706351143, 801.0], 68: [58.62468922512116, 641.0, 179.05606838930703, 681.0], 69: [72.9362275446633, 641.0, 155.5382589576662, 661.0], 70: [72.9362275446633, 661.0, 179.05606838930703, 681.0], 71: [58.62468922512116, 681.0, 319.59111706351143, 801.0], 72: [77.45789928619465, 681.0, 186.72193797774793, 701.0], 73: [77.45789928619465, 701.0, 319.59111706351143, 801.0], 74: [131.6683785114693, 701.0, 245.16531836120765, 721.0], 75: [131.6683785114693, 721.0, 319.5911170635115, 801.0], 76: [155.52453787698153, 721.0, 262.25510121550843, 741.0], 77: [155.52453787698153, 741.0, 319.5911170635115, 801.0], 78: [174.90777460579642, 741.0, 283.7522643931727, 761.0], 79: [174.90777460579642, 761.0, 319.5911170635115, 801.0], 80: [203.5522082484456, 761.0, 295.00000000000006, 781.0], 81: [203.5522082484456, 781.0, 319.5911170635115, 801.0], 82: [24.304663966674365, 801.0, 293.97604793875377, 1341.0], 83: [39.514449605969034, 801.0, 245.77895632343905, 1081.0], 84: [42.94353674767131, 801.0, 245.77895632343908, 961.0], 85: [63.11290221833339, 801.0, 245.77895632343905, 921.0], 86: [68.55915970937963, 801.0, 245.77895632343905, 861.0], 87: [83.59825002681382, 801.0, 245.77895632343905, 841.0], 88: [104.73324323948347, 801.0, 245.77895632343905, 821.0], 89: [104.73324323948347, 821.0, 221.9768724255468, 841.0], 90: [83.59825002681382, 841.0, 172.537484341538, 861.0], 91: [68.55915970937963, 861.0, 228.8426975957604, 921.0], 92: [84.71291071458916, 861.0, 228.8426975957604, 901.0], 93: [109.78727456686241, 861.0, 228.8426975957604, 881.0], 94: [109.78727456686241, 881.0, 218.47992243082945, 901.0], 95: [84.71291071458916, 901.0, 220.0405354526725, 921.0], 96: [63.11290221833339, 921.0, 197.19149724925092, 961.0], 97: [75.64517596445138, 921.0, 197.1914972492509, 941.0], 98: [75.64517596445138, 941.0, 168.03056822031948, 961.0], 99: [42.94353674767131, 961.0, 192.74205951848964, 1081.0], 100: [46.09044403309011, 961.0, 192.74205951848964, 981.0], 101: [46.09044403309011, 981.0, 191.1447307690897, 1081.0], 102: [47.870364840432245, 981.0, 186.53346360706666, 1021.0], 103: [76.94392778126328, 981.0, 186.53346360706666, 1001.0], 104: [76.94392778126328, 1001.0, 182.1350427804442, 1021.0], 105: [47.870364840432245, 1021.0, 191.1447307690897, 1081.0], 106: [62.452817999901654, 1021.0, 142.13004105337117, 1041.0], 107: [62.452817999901654, 1041.0, 191.14473076908968, 1081.0], 108: [76.63373538188878, 1041.0, 191.14473076908968, 1061.0], 109: [76.63373538188878, 1061.0, 177.98819140844643, 1081.0], 110: [39.514449605969034, 1081.0, 293.97604793875377, 1341.0], 111: [62.82877250979169, 1081.0, 152.067249201659, 1101.0], 112: [62.82877250979169, 1101.0, 293.9760479387538, 1341.0], 113: [77.84786711945506, 1101.0, 228.56507136986707, 1161.0], 114: [81.49963588376832, 1101.0, 187.6732037595342, 1121.0], 115: [81.49963588376832, 1121.0, 228.56507136986707, 1161.0], 116: [88.41224949383337, 1121.0, 225.82919777883342, 1141.0], 117: [88.41224949383337, 1141.0, 228.56507136986707, 1161.0], 118: [77.84786711945506, 1161.0, 293.9760479387538, 1341.0], 119: [81.5751681646654, 1161.0, 214.6498246541341, 1181.0], 120: [81.5751681646654, 1181.0, 293.9760479387538, 1341.0], 121: [85.7543854438508, 1181.0, 211.9999378754848, 1201.0], 122: [85.7543854438508, 1201.0, 293.9760479387538, 1341.0], 123: [87.51152832797051, 1201.0, 209.8889532697455, 1221.0], 124: [87.51152832797051, 1221.0, 293.9760479387538, 1341.0], 125: [93.45884925120957, 1221.0, 293.9760479387538, 1321.0], 126: [106.67563111730333, 1221.0, 293.9760479387538, 1301.0], 127: [121.8467876898846, 1221.0, 293.9760479387538, 1281.0], 128: [134.4052542877582, 1221.0, 293.9760479387538, 1261.0], 129: [160.24536440369974, 1221.0, 293.9760479387538, 1241.0], 130: [160.24536440369974, 1241.0, 287.60887367152895, 1261.0], 131: [134.4052542877582, 1261.0, 247.47991389044586, 1281.0], 132: [121.8467876898846, 1281.0, 229.62590960901167, 1301.0], 133: [106.67563111730333, 1301.0, 212.76278941170483, 1321.0], 134: [93.45884925120957, 1321.0, 215.49496996216834, 1341.0], 135: [21.485891084844795, 1341.0, 237.26018940594327, 1821.0], 136: [37.35955532117313, 1341.0, 169.23287410114563, 1361.0], 137: [37.35955532117313, 1361.0, 237.26018940594324, 1821.0], 138: [43.062020660323995, 1361.0, 237.26018940594327, 1721.0], 139: [44.469128902603956, 1361.0, 237.26018940594327, 1661.0], 140: [47.04839654700764, 1361.0, 237.26018940594327, 1581.0], 141: [48.562682161367604, 1361.0, 205.90850329584094, 1421.0], 142: [52.46387644747192, 1361.0, 197.76288659580274, 1401.0], 143: [61.28661958437684, 1361.0, 197.7628865958027, 1381.0], 144: [61.28661958437684, 1381.0, 183.10488502413324, 1401.0], 145: [52.46387644747192, 1401.0, 205.90850329584094, 1421.0], 146: [48.562682161367604, 1421.0, 237.26018940594324, 1581.0], 147: [50.94472090128551, 1421.0, 237.26018940594324, 1561.0], 148: [58.56296996537603, 1421.0, 237.26018940594324, 1521.0], 149: [77.26743263472024, 1421.0, 237.26018940594327, 1501.0], 150: [82.2889140187697, 1421.0, 212.84625141267495, 1461.0], 151: [100.99896162386045, 1421.0, 212.84625141267495, 1441.0], 152: [100.99896162386045, 1441.0, 158.974488269472, 1461.0], 153: [82.2889140187697, 1461.0, 237.26018940594327, 1501.0], 154: [108.17660329499483, 1461.0, 237.26018940594327, 1481.0], 155: [108.17660329499483, 1481.0, 225.69560959367323, 1501.0], 156: [77.26743263472024, 1501.0, 218.0192653213639, 1521.0], 157: [58.56296996537603, 1521.0, 214.02291155380982, 1561.0], 158: [103.33048999274695, 1521.0, 213.0275687992936, 1541.0], 159: [103.33048999274695, 1541.0, 214.02291155380982, 1561.0], 160: [50.94472090128551, 1561.0, 164.16836756710643, 1581.0], 161: [47.04839654700764, 1581.0, 206.18326523689484, 1661.0], 162: [53.85442964954589, 1581.0, 206.18326523689484, 1621.0], 163: [61.923613516829526, 1581.0, 206.18326523689484, 1601.0], 164: [61.923613516829526, 1601.0, 197.13440049814065, 1621.0], 165: [53.85442964954589, 1621.0, 203.47868359962476, 1661.0], 166: [69.78000822879912, 1621.0, 203.47868359962476, 1641.0], 167: [69.78000822879912, 1641.0, 192.5451637233406, 1661.0], 168: [44.469128902603956, 1661.0, 201.3366588277066, 1721.0], 169: [49.45365719959193, 1661.0, 183.41471968467957, 1681.0], 170: [49.45365719959193, 1681.0, 201.3366588277066, 1721.0], 171: [67.54755288861216, 1681.0, 201.3366588277066, 1701.0], 172: [67.54755288861216, 1701.0, 187.3248097781751, 1721.0], 173: [43.062020660323995, 1721.0, 190.80841572099877, 1821.0], 174: [43.06209569536991, 1721.0, 190.80841572099877, 1801.0], 175: [46.7984097993226, 1721.0, 165.8302658443396, 1741.0], 176: [46.7984097993226, 1741.0, 190.80841572099877, 1801.0], 177: [49.33286147788857, 1741.0, 190.80841572099877, 1781.0], 178: [70.54379927582082, 1741.0, 190.80841572099877, 1761.0], 179: [70.54379927582082, 1761.0, 186.02978855545499, 1781.0], 180: [49.33286147788857, 1781.0, 174.8966468261624, 1801.0], 181: [43.06209569536991, 1801.0, 183.88339366347225, 1821.0], 182: [9.655570319407495, 1821.0, 146.65121385551768, 1861.0], 183: [13.8198681989007, 1821.0, 142.75604070443794, 1841.0], 184: [13.8198681989007, 1841.0, 146.65121385551768, 1861.0], 185: [1.0, 1861.0, 138.69111542596403, 1881.0]}}

import pandas as pd
from cocoatree.io import load_MSA, load_tree_ete3
from cocoatree.visualization import update_tree_ete3_and_return_style

annot_file = 'data/random_seq_tree_annotations.csv'
df_annot = pd.read_csv(annot_file)

tree_file = 'data/random_seq_tree_kpicsg_ete3.treefile'
tree_ete3 = load_tree_ete3(tree_file)

sector_file = 'data/SCA_sector_1_core_tagged_seq.fasta'
data = load_MSA(sector_file, 'fasta')

sector_id = data["sequence_ids"]
sector_seq = data["alignment"]

tree_style = update_tree_ete3_and_return_style(
    tree_ete3, df_annot, sector_id, sector_seq,
    meta_data=('class', 'HMM_annotation', 'superkingdom'),
    fig_title='Visualization example',
    t_sector_seq=True,
    t_sector_heatmap=True,
    colormap='inferno'
    )


tree_ete3.render("sector_phylogeny.png", tree_style=tree_style)
